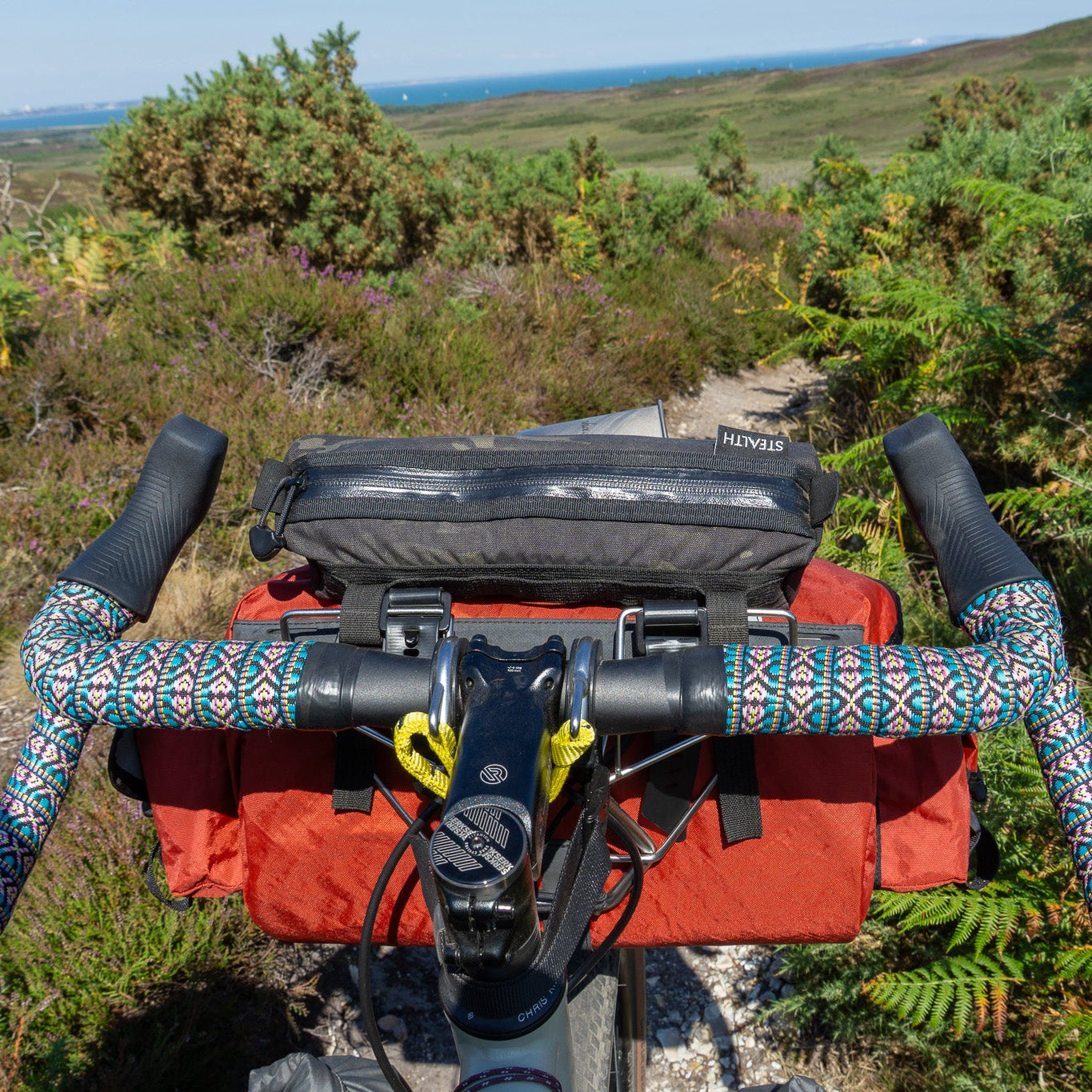

bar bag gravel bike CLIFF The Bag Hanger – WHOLEGRAIN CYCLES

KEY DETAILS

+ Used to mount most 'two-strap' handlebar bags (best for top loading handlebar bags) in front of your handlebars for these key reasons:

• Get your 'tops' handlebar space back if you use drop bars.
• Places your handlebar bag away your cables and head tube, preventing damage.
• Gives a more reliable front tyre clearance*.
• Positions a top loading handlebar bag in a more accessible orientation.

+ Uses our simple universal** fit system - An evolution on the successful and much loved JACK The Bike Rack mounting system that requires no tools to fit!

+ Made from durable and high quality 304 Stainless Steel, partnered with other high quality materials. All parts easily replaceable and adaptable.

+ Designed to combine perfectly with CARRIE Cradle if you want to gain all the benefits of CARRIE, on top of those of CLIFF.

WHATS 'IN THE BOX':

CLIFF (the bag hanger)

2 x 31.8mm Handlebar Spacer

2 x 25.4mm Handlebar Spacer

2 x 22.2mm Inserts (converts the 25.4mm Handlebar Spacers to become 22.2mm Handlebar Spacers)

2 x 22.2mm Taper Inserts (converts the 25.4mm Handlebar Spacers to fit handlebars that have a 25.4mm stem clamping area but with an immediate taper down to 22.2mm, next to the stem clamping area)

Load Strap, with retaining clip for any excess strap.

Retention Strap with Stainless Steel cam-lock buckle

Short Retention Cord

DIMENSIONS:

WEIGHT:

LOAD CAPACITY:

Maximum 5kg.

MATERIALS:

CLIFF: 304 Stainless Steel bar

Spacers & Inserts: Nylon 6.6

Load Strap: High Strength recycled polyester with Stainless Steel Keeper Clip.

Retention Strap: Recycled polyester webbing with Stainless Steel buckle

Retention Cord: Recycled polyester cord with POM hardware

WARRANTY:

1 Year*** for all parts.

COMPATIBILITY DETAILS:

To understand the below compatibility details better, please watch the installation video located at the end of the photo gallery

Handlebars with a 31.8mm, 25.4mm or 22.2mm diameter stem clamping area.

12mm of free handlebar space either side of stem faceplate.

A handlebar bag that has a horizontal ‘MOLLE’ style or other similar style two strap mounting system no wider than 225mm from the outer edges of the mounting straps.

Use with handlebar bags that (when mounted on CLIFF and loaded up to 5kg) have at least 5cm of clearance from the top of the front tyre to the bottom of the bag.

0 degree to +40 degree stem. (Negative angle stems are compatible, if the angle of the stem when fixed to the steerer tube, doesn’t produce a negative angle to the ground level of 180 degrees.

Compatible with both Quill (threaded) and threadless stems, (but not compatible with most integrated bar-stems, aero bars or some other ‘alt-bars’).

Compatible with handlebars of any material - Metal, carbon, wood, etc. No clamping force combined with nylon hardware means only some cosmetic damage may occur to the handlebar due to micro abrasion.

Suitable for both rigid and suspension fork bikes, providing the distance from the bottom of the mounted and loaded bag, is at least 5cm from the top of the front tyre.

* ‘Reliable tyre clearance’ refers to the fact that inevitable changes in handlebar bag shape and droop due to different packing styles and handlebar bag constructions, will affect the amount of tyre clearance a handlebar bag has, during a bikepacking trip, or over the life and use of the bag, and that CLIFF helps reduce these changes, and holds the bag further from the tyre in almost all cases.

** The mounting system designed for CLIFF (which is an evolution of that from JACK the bike rack) fits all standard handlebar sizes and shapes, but does not fit all ‘alt.’ style, or ‘aero’ style handlebars. ‘Universal’ refers to the fact that it will fit the majority of road and mountain bike handlebars that use a stem, and 31.8mm, 25.4mm and 22.2mm round handlebars. Get in contact with us, or review the compatibility information and installation video if you need more information.

*** Wholegrain Cycles provides a one-year limited warranty, at its sole discretion, covering all components against defects in materials and workmanship; this warranty excludes damage resulting from misuse, accidents, normal wear and tear, or exposure to extreme environmental conditions beyond the product's intended use.
